LC-1325 wood high speed CNC cutting machine LC-1325 manufacturer from China Jinan Linchao Economic Trade Co.,Ltd

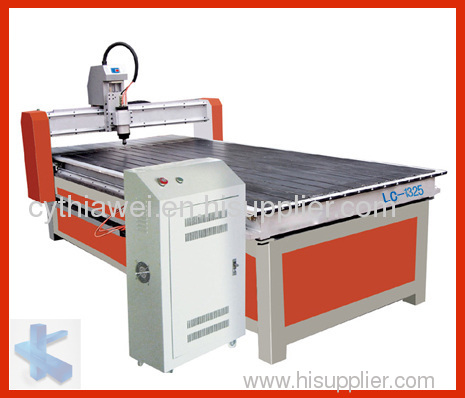

LC-1325 wood high speed CNC cutting machine

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LC-1325

Production Capacity: We can supply 150 sets per ...

Delivery Date: in about 15 days after paym...

Condition: New

Means of Transport: Ocean

Packing: in wooden cases

CNC or Not: CNC

Color: orange and gray

wood high speed cnc cutting machine
1.Economical type ,with whole steel structure
2Adopting advanced DSP system

LC-1325 wood high speed CNC cutting machine
Product Features

1) Economical type with whole steel structure

2) The idle speed is up to 35 meters/min , engraving speed is 20 meters/min

3) Adopting advanced DSP system , operated with the handle , convenient operation , designed with more human nature .

4) Unique intelligent budget principle , fully develops the potential of the motor and lead to high processing speed , the synchronnization of the curves and straight lines , smoother curves .

- Y spindle adopts double motors to drive

- High strength steel tube jointing

- It divided into 6 vacuum table - board

- Professsional and human nature 3D control system

- Optional auto tool exchanger , and temperature control system .

Technical Specifications

Model Type	Economical Type LC 1325
X , Y Working Area	1250 * 2440 mm
Z Working Area	>110 mm
Table Size	1440 * 3000 mm
Max . Speed	35 m/ min
Max Working Speed	20 m / min
Working Delicacy	0.01 mm
Repositioning Accuracy	0.05 mm
Feeding Height	120 mm
Command	G.u00.mmg*.plt
Surroundings for software	Windows98 / 2000 / xp
Power ( not include he spindle )	1500w
Power	AC 220V / 50 Hz
Main axle power rate	3 kw / 4.5 kw
Main axle rotating speed	24000 rpm / min
Word Mode	Steper
