Product Detail

Means of Transport: Ocean

Packing: in wooden cases

Production Capacity: We can supply 150 sets per ...

Delivery Date: in about 15 days after paym...

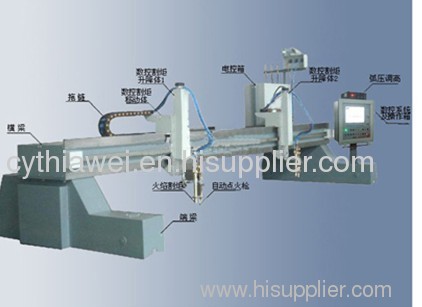

GTD series cutting machine comprises a CNC system, drive systems, control systems, mechanical systems, air system.

GTD Series CNC plasma cutting machine is a hardware and software in the absorption of foreign advanced technology, processing and supporting metal structure of a self-developed high-efficiency automatic cutting steel cutting equipment, cutting the vertical and horizontal lines can also be roundarc curve in any direction cutting, cutting surface roughness and high precision, small deformation.The machine has reasonable structure, simple operation, advanced technology and so on.
GTD series cutting machine comprises a CNC system, drive systems, control systems, mechanical systems, air system.The machine is mainly used for sheet metal flat plasma cutting various shapes, full-featured, high degree of automation, advanced configuration, cutting, high precision, good quality, dynamic stability.CNC system, servo system uses the internationally renowned brands, performance products, convenient user interface, friendly operation, rich software and high-quality hardware configuration, a full range of protective measures to provide users with a high-quality products.

Plasma cutting machine

Basic function:

Rail Spacing	2000mm
Rail Length	6000mm
Drive Mode	Bilateral drive
CNC System	Shanghai Jiaotong University Industrial Control System
Console position(confirmed before the order)	Left Operation
CNC Plasma Cutting Torch	One group
Move torch body	One group(CNC)
Horizontal transmission line	Towline
Vertical transmission pipeline	Towline
Plasma cutting power supply(model available on request optional)	Taiwan Plasma AP-100A
Electrical cabinet	Electrical cabinet (some of the imported configuration)

Functional configuration:

Automatic arc voltage increase	HYD (1 SET)
Nesting software programming	1 SET

Technical index

Effective cutting width	1500mm
Effective cutting length	3000mm
Air-way speed	0-8000mm/min
Plasma cutting material Plasma cutting thickness of perforated steel	Carbon steel, stainless steel 15mm
Plasma duty cycle	100%
Plasma cutting thickness of the steel edge of the start	25mm
Plasma cutting thickness of perforated stainless steel	15mm
Plasma cutting edge of stainless steel thickness	25mm
Down from the cutting torch	≤150mm
Standard machine precision	JB/T5102-1999
Automatic lift precision	±0.5mm
Linear positioning accuracy	±0.5mm/10m
Linear Repeatability	±0.5mm/10m
Speed error	±5%
Cutting roughness	Ra≤12.5μm

Working Condition:

ambient temperature	-10℃~+40℃
relative humidity (RH)	≤95% no condensing
Surrounding environment	Ventilation, no greater impact
Mains voltage	220V/3×380V±10V
supply frequency; mains frequency	50Hz
The input power (the machine parts)	3-5KW
Plasma power supply capacity	Above 15KW
Plasma cutting gas	As different size plasma equipped
Plasma protection gas	As different size plasma equipped
Plasma cutting gas source requirement	Dry, no oil, no water Pressure: 1 Mpa, flow rate: 0.3 m3 / min
Plasma cutting gas source requirement: 1oxygen 2 nitrogen 3 compressed air	oxygen:Purity: 99.95%, pressure 1Mpa, flow rate5m3 / h nitrogen :99.95% pressure, 1Mpa,flow rate10 m3 / h compressed air:99.95%, pressure 1Mpa, flow rate5m3 / h
Flame cutting gas (in need before delivery to determine)	Oxygen and acetylene or oxygen + propane
Oxygen inlet pressure	0.8-1.0MPa
Gas inlet pressure	0.04~0.06MPa 0.08~0.1MPa

The Lord list

CNC System

Shanghai Jiaotong University Industrial Control System

1 set

With plasma cutting machine power supply

Taiwan Plasma AP-100A

1 set

CNC cutting torch lifting devices

German technology

LZ-200III

1 set

Automatic arc pressure ShiDiao high device

HYD

XPTHC-300I

1 set

Plasma cutting torch prevent collision

JinRunJi

Each 1 set

Horizontal servo drive

panasonic

1 set

The longitudinal servo drive

2 set

Horizontal drive servo motor

1 set

Driving longitudinally servo motor

2 set

Horizontal planet reducer

Germany

1 set

Vertical planetary reducer

NEUGART

2 set

Programming set of material software

Australia FASTCAM standard edition set of material software

1 set

The main electrical components

Japan OMRON China chengtai

1 set

display

PHILIPS

1 set

Horizontal drag chain

IdeaTech

1 set

Longitudinal drag chain

IdeaTech

1 set

Motor cable

Germany IGUS

Each 1 set

Rail System

24kg,Each vice: 2 root * 2 meters/root

3 vices

technical documents

Name	Quantity
Packing List	1 set
The machine instructions	1 set
The operating system servo system operation manual and plasma power manual	Each 1 set
Electrical diagrams	1 set
Product quality certificate	1 set

Random spare parts

Name	Qantity
The fuse: 2 A and 6 A	Each one set
M6 M8 hex wrench	Each one set
Plasma vulnerable parts: according to relevant the type of plasma we provide supporting original	one set
