Product Detail

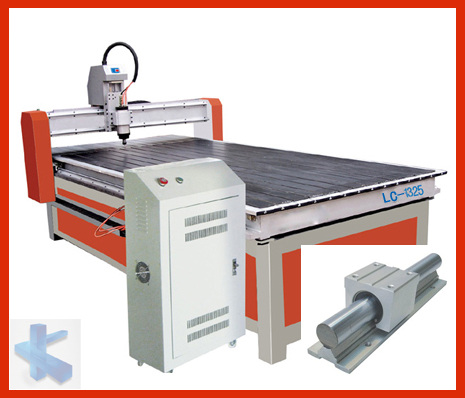

Model No.: LC-1325

Production Capacity: We can supply 150 sets per ...

Delivery Date: in about 15 days after paym...

Condition: new

Work envelope: 1300*2500mm

Resolution: ±0.0025mm

Means of Transport: Ocean

Packing: in wooden cases

CNC or Not: CNC

Machine Size: 1300*3100mm

Repositioning resolution: ±0.02mm

Command Code: HPGL.G Code

woodworking Machine
Cast steel structure
Strong Drive
Compatible softwares
Perfect lubricating system

Woodworking Machine

Product Features

Cast steel structure makes our routers more stable

Excellent Parts : Imported linear rails , Imported German ball screw , high speed air-cooling spindle , high precision bearing which has low noise and long life .

Strong Drive : stepper motor offers strong drive ( Servo motor can be optional )

Reasonable Designs : advanced rack and pinion drive in Y axis with larger speed and strength .

Convenient Operation : We adopt advanced DSP control system with USB port , running without PC completely and saving PC resources .

Compatible softwares : open softwares ports , compatible with processing codes created by many CAD/CAM softwares including Type3/Artcam /Castmate / Ucan to pave the way for designs .

Perfect lubricating system makes maintenance much easier and makes the machine a long life .

Product Parameters

Machine Size	1300*3100mm
Work envelope	1300*2500mm
Repositioning resolution	±0.02mm
Resolution	±0.0025mm
Spindle Power	3KW
Spindle speed	6000-18000rpm/Min
Max.speed	35m/Min
Max.cutting speed	20m/Min
Bridge clearance	200mm
Working voltage	AC380V/50Hz
Command Code	HPGL.G Code
