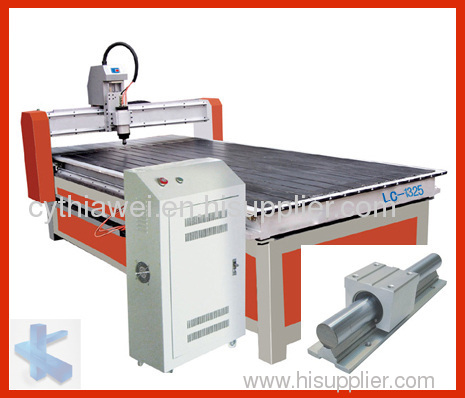

LC-1325 wood high speed cnc cutting machine

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LC-1325

Production Capacity: We can supply 150 sets per ...

Delivery Date: in about 15 days after paym...

Condition: New

Means of Transport: Ocean

Packing: in wooden cases

CNC or Not: CNC

Color: White and Red

Detailed Product Description
cnc cutting machine
1.Economical type ,with whole steel structure
2Adopting advanced DSP system
3.Uniq

cnc cutting machine

Product Features

1) Economical type with whole steel structure

2) The idle speed is up to 35 meters/min , engraving speed is 20 meters/min

3) Adopting advanced DSP system , operated with the handle , convenient operation , designed with more human nature .

4) Unique intelligent budget principle , fully develops the potential of the motor and lead to high processing speed , the synchronnization of the curves and straight lines , smoother curves .

- Y spindle adopts double motors to drive

- High strength steel tube jointing

- It divided into 6 vacuum table - board

- Professsional and human nature 3D control system

- Optional auto tool exchanger , and temperature control system .

Technical Specifications

Model Type	Economical Type LC 1325
X , Y Working Area	1250 * 2440 mm
Z Working Area	>110 mm
Table Size	1440 * 3000 mm
Max . Speed	35 m/ min
Max Working Speed	20 m / min
Working Delicacy	0.01 mm
Repositioning Accuracy	0.05 mm
Feeding Height	120 mm
Command	G.u00.mmg*.plt
Surroundings for software	Windows98 / 2000 / xp
Power ( not include he spindle )	1500w
Power	AC 220V / 50 Hz
Main axle power rate	3 kw / 4.5 kw
Main axle rotating speed	24000 rpm / min
Word Mode	Steper
