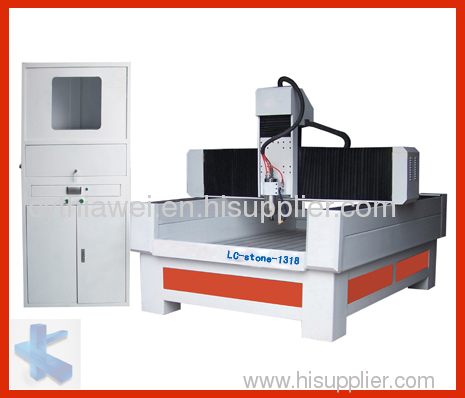

LC-1318 Advertising CNC Router LC-1318 manufacturer from China Jinan Linchao Economic Trade Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)

Product Detail

Model No.: LC-1318

Production Capacity: We can supply 150 sets per ...

Delivery Date: in about 15 days after paym...

Condition: New

Means of Transport: Ocean

Packing: in wooden cases

CNC or Not: CNC

Color: Gray and orange

Detailed Product Description
strong cutting ability
high accuracy
steel framework

Stabdard features Three .axle adopts linear guide rail, it runs smooth and has high precision With the strong steel structure of the machine which is invariant, the table back has lining steel plate, so the rigidity is good With constant power motor of main axle , it has powerful outing capacity and high efficience It can keep 9 points and possesses continuouse welding function of breakpoint, and can keep welding after off-on power to reduce rate of waste produc Model 1318
X Y axis working area	1300*1800mm
Max. speed	20m/min
Working table size	1300*1800mm
Table size	1430*2200mm
Frame structure	Overall welding
Table	PVC
Z axis working area	200mm
Driving System	Ncstudio
Type of Driving Motor	Leadshine 860H
Max. Woking speed	10m/min
Working Delicacy	0.005mm
Reposition Accuracy	0.05mm
Max. Feeding Height	170mm
Rotatory Device	diameter<170mm length<1800mm
Max. Power Consumption	3KW
Spindle	2.2kw(Constant power)
Spindle Speed	0-24000rpm/min
Cooling Method	Watre cooling system
Working Voltage	220V(110V)
Engraving Command	Code G
Breakpoint Specific Memory	yes
Surroundings for Software Windows XP/Vista/7	Windows98/2000/XP/Vista/7
Software Included	Type3
Manner off Receiving Data	USB / PCI
Running Temperature	0~45°C
Relative Humidity	30%~75%
Options	vac-sorb
